How photochemical etching is transforming the world of electric vehicle design

Karl Hollis

We have turned a corner in the world of automotive manufacturing. Design engineers are now shifting their attention to new technologies to ensure they aren’t left in the dust by disruptive start-ups. Karl Hollis, Director of Engineering discusses how photochemical etching can enable manufacturers to produce specialist EV components more cost-effectively, without compromising on precision.

In December 2021, European sales of electric cars overtook diesel models for the first time ever. According to data compiled by The Financial Times and independent auto analyst Matthias Schmidt, over 20% of new cars sold across 18 European markets, including the UK, were powered solely by battery technology.

With governments across Europe also providing subsidies and grants to further encourage the uptake, the demand for electric vehicles is only going to soar from here. As a result, manufacturers must adopt new processes to produce next-gen vehicles. These vehicles need different parts and a different level of supply chain collaboration to deliver performance efficiently and cost-effectively.

What is photochemical etching?

Photochemical etching is just one solution being adopted by EV manufacturers, but what is it?

An alternative to traditional stamping and laser cutting, photochemical etching is a subtractive sheet metal machining process that uses chemical etchants to create complex and highly accurate precision components from almost any metal.

The geometric complexity and precision tolerances offered by chemical etching make it not just a desirable manufacturing process but, in some instances, the only technology suitable for mission or safety-critical metal components.

Although for some parts traditional machining methods would be adequate, the tooling for the complex components required by the EV manufacturing industry can cost significantly more. Also, non-standard materials, thicknesses and grades can be a limitation.

image of Photochemical etching

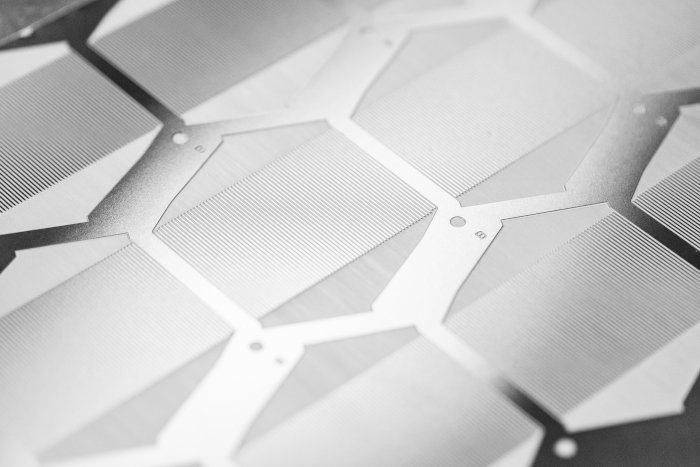

Bipolar plates for FCEV

Hydrogen fuel cells are used to store and deliver the power within electric vehicles and are one of the most efficient options for doing so.

They are produced by stacking precise and intricate plates, machined with complex grooves or channels, which enable liquid and gases to flow. These can be variously manufactured using CNC-machining, hydroforming and stamping, but there are question marks over the scalability and capability of these processes.

Increased demand for cost-effective fuel cells is rising with the number of vehicles being produced increasing to meet demand. This is having a knock-on effect on material choice and the chosen method of manufacturing.

A key component of fuel cells is bipolar plates, which have traditionally been machined from graphite — an expensive and highly permeable material. But in an increasingly competitive world, steel is becoming increasingly popular as it is relatively easy to manufacture as well as being a highly durable metal. Stainless steel’s characteristics, in particular its strength, chemical stability, low cost and suitability for mass production, make it ideally suited for bipolar fuel cell plates.

Creating plates using traditional metalworking technologies such as stamping and hydroforming compromise planarity (flatness) and introduce stresses and burrs. Tooling can also be slow and uneconomical to produce – in some instances many months – increasing development timelines.

The photochemical etching process offers manufacturers significant advantages when producing complex fluidic components such as bipolar fuel cell plates, reducing inefficiencies while maintaining precision decreasing time to market.

Electric Car Battery Pack
Electric Car Battery Pack

Busbars for EV batteries

Typically produced from conductive alloys like copper or aluminium, busbars are solid metal bars used to carry electric current from high energy batteries to e-motors and e-axles.

Unlike cables, they are shorter in height and carry more power, making them ideal for linking cell modules in electric vehicle batteries.

Busbars are typically stamped then sent to be machined separately but using two different processes is slower and can incur additional costs. Progressive die stamping, a single process alternative, can incur expensive upfront tooling costs. Chemical etching, by comparison, offers a simpler solution. Using digital tooling, prototypes can be produced faster, often in just a few days, and with significantly lower financial outlay.

image of man holding ev component

Motor laminations

The photochemical etching process can also be used to provide metal laminations used to produce motors, generators, stators and rotors, and segmented laminations. Metal laminations, sometimes known as silicon or electrical steel laminations, are manufactured from electrical steels, stacked then bonded to form the core of transformers or the stator and rotor of electric motors.

Though motor laminations are often profiled using stamping, this process can cause residual stress which alters the magnetic properties of electrical steels, and burrs which can cause problems during winding.

Distortion-free, and fast

First, and probably most importantly, the photochemical etching process requires no hard tooling. Its use of digital technologies means tooling can be produced and adapted much more affordably, providing automotive manufacturers with the ability to be agile and with minimum disruption on the overall manufacturing process. The process also allows a speedy transition between prototyping stages and high-volume production.

Petrochemical Etching Process
Petrochemical Etching Process

The quality of the final product can also be improved. In the automotive industry, where safety and performance are critical, photochemical etching allows manufacturers to produce highly repeatable components that are free of the burring and stresses that can occur through traditional machining. This is particularly important for fuel cell plates where imperfections can compromise stack bonding and ultimately lead to product failure.

In the metal lamination process, the non-contact and non-heat inducing nature of chemical etching guarantees there are no alterations in the properties of electrical steels. This means laminations can be manufactured with zero distortion and no post-process annealing.

Lead times measured in days, not months.

Photochemical etching removes metal simultaneously, meaning complex channels or flow fields can be etched on both sides of the plate to an accuracy of ±0.020 mm. For metal laminations, chemical etching can be combined with wire EDM for even greater precision of up to ±0.005mm. This versatility enables designers to vary the size and shape of channels and incorporate headers, collectors, and port features without additional cost.

Despite offering designers almost unlimited complexity, speed is not compromised with photochemical etching. In fact, unlike traditional machining lead times, those of chemical etching are measured in just days rather than months.

Flexibility of materials

Typically, Precision Micro manufactures bipolar plates from 316L-grade stainless steel but plates can also be specified in exotic and hard to machine metals such as titanium and aluminium for lighter-weight and corrosion resistance in high-temperature fuel cell applications.

For motor laminations, all grades of electrical steels, silicon steels, nickel-iron alloys and iron-cobalt alloys can be supplied. Proprietary grades such as VACOFLUX® can also be etched.

Busbars can be supplied from copper, brass or aluminium as standard, with one-offs to high-volume production supply possible using the same tooling in days.

The versatility of the photochemical etching process, makes it a compelling option for the manufacture of complex sheet metal parts within the electric vehicle manufacturing supply chain. As well as stimulating the innovation required by an industry that is changing at pace, it removes obstacles for design engineers inherent in traditional technologies.

Karl Hollis, Director of Engineering at Precision Micro
